Twin Stim Plus Digital TENS and EMS Unit – 2nd Edition

Description

The popular Twin Stim Plus is a four-channel TENS and EMS combo unit that comes with eight electrodes. It offers users a selection of five TENS modes and three EMS modes. The device can be powered by either four AA batteries or an AC adapter.

TENS Modes:
– Burst
– Normal
– Modulation
– SD1
– SD2

EMS Modes:
– Constant
– Synchronous
– Alternate

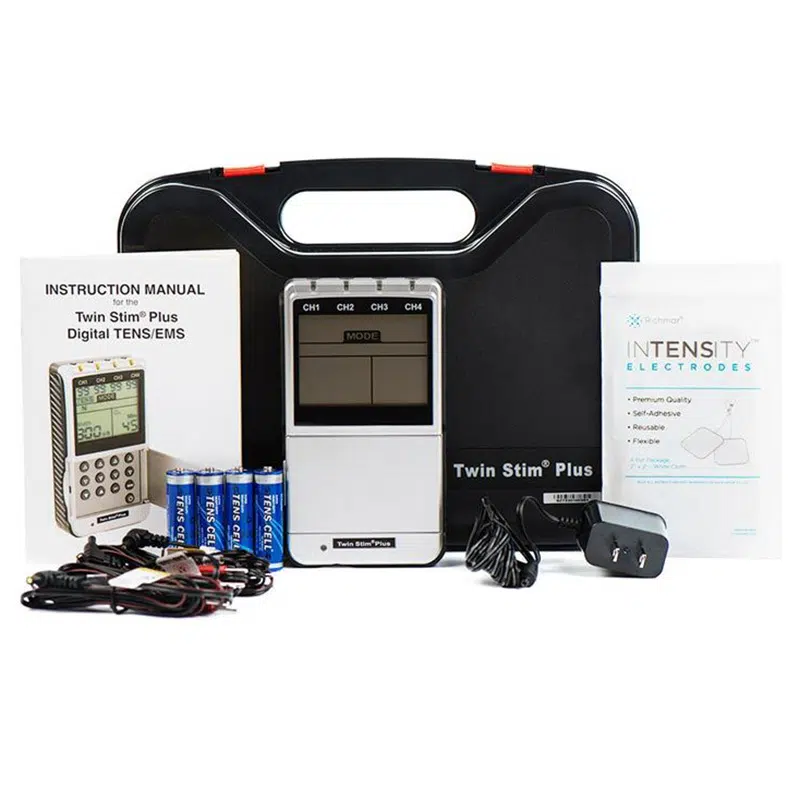

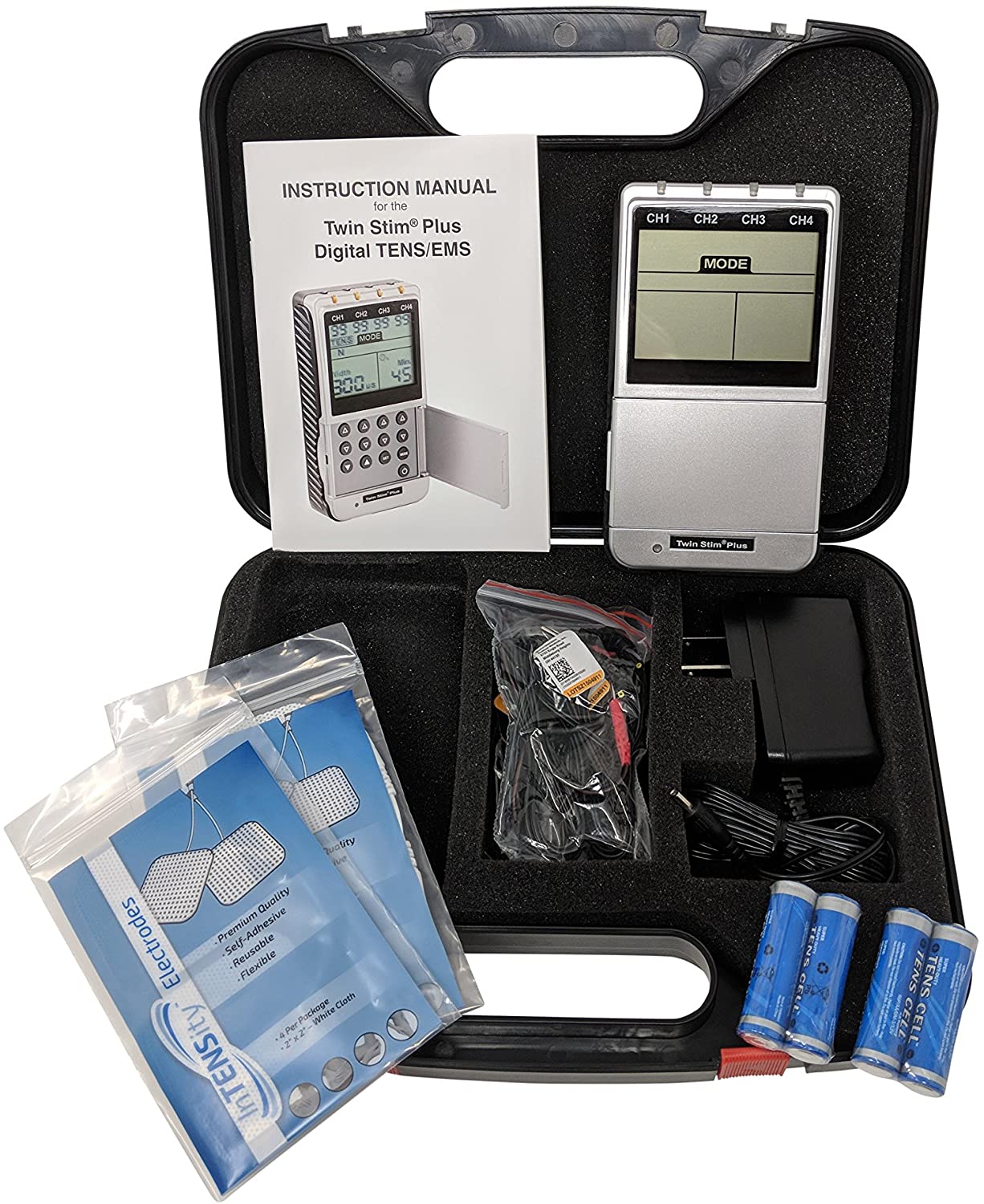

System Includes:
– Device
– AC adapter
– Four lead wires
– Eight self-adhesive reusable electrodes
– Four AA batteries
– Hard plastic carrying case
– Instruction manual

Features:
– Built-in patient compliance monitor
– Power Source: 4 AA batteries
– Pulse Width: 50-300 µs, adjustable
– Pulse Rate: 2-150 Hz, adjustable
– Pulse Ramp: 1-8 seconds
– Pulse Amplitude: Adjustable up to 80 mA peak into a 500 ohm load
– Contraction Time: 2-90 seconds, adjustable in 1-second steps
– Relaxation Time: 0-90 seconds, adjustable in 1-second steps
– Wave Form: Asymmetrical bi-phase square pulse
– Timer: 1-60 minutes or continuous
– One-year warranty
